Technical Specifications
Overview

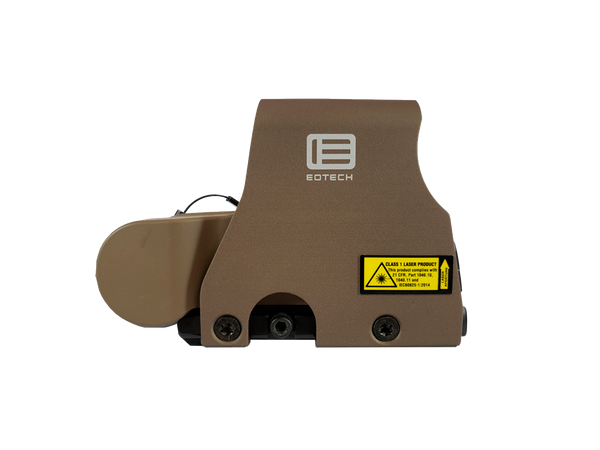

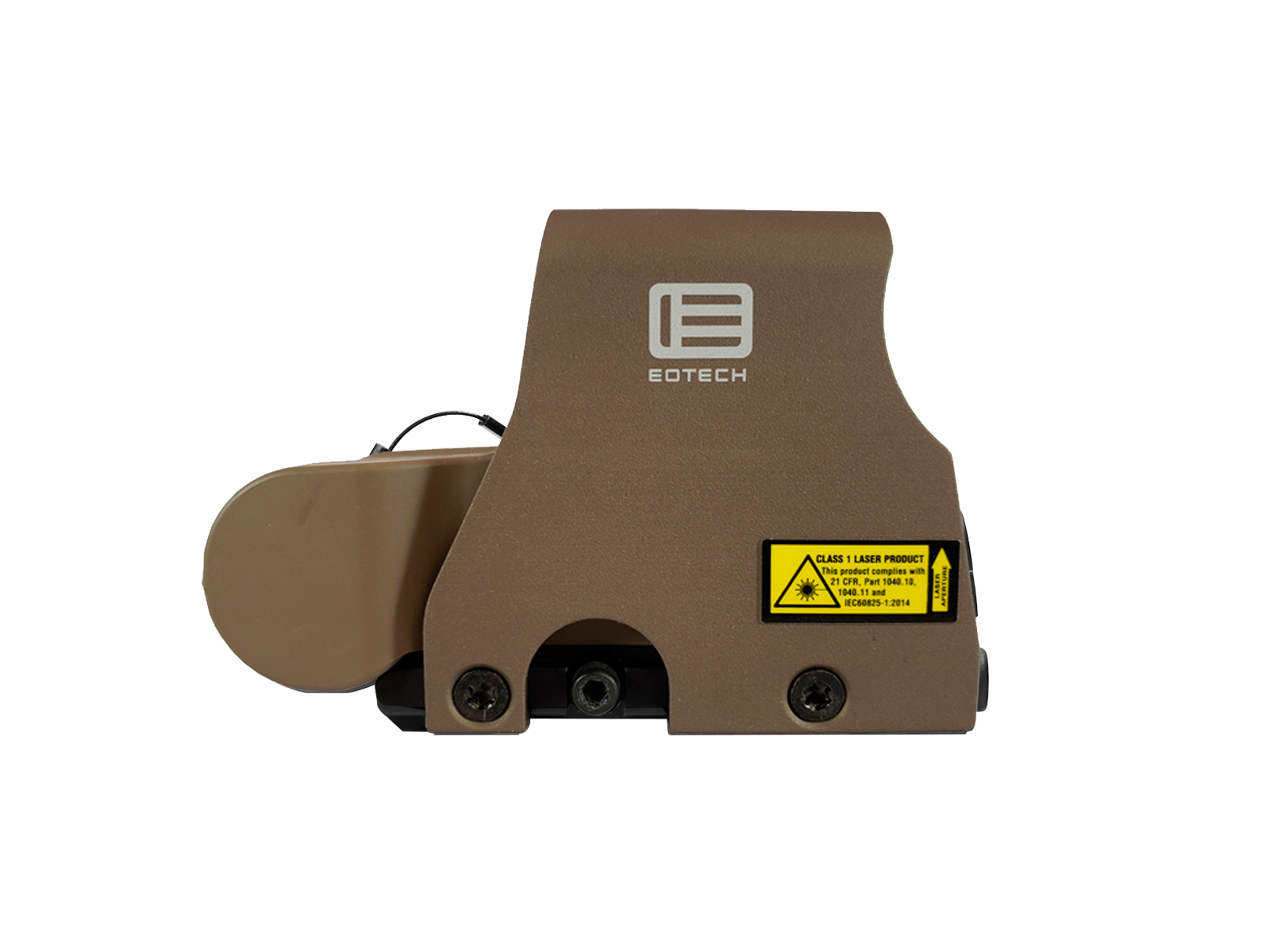

The HWS XPS2™ TAN is the non night-vision version of our shortest and lightest HWS sight so far. The CR123 lithium battery configuration of the XPS2 provides additional rail space, leaving more room for rear iron sights or magnifiers. Also offering water-resistant capability up to 10 feet, the XPS2 is a great compact and lightweight option for your platform. One of our most popular HWS models now offered in tan.
Included in the box:
- HWS XPS2™ Tan
- Quick-Start Guide
- Warranty Card
- CR123 Battery
- Protective Case
Non-Night Vision Compatible
L X W X H
3.8" x 2.1" x 2.5" (96.5 x 53.3 x 63.5 mm)
Weight
9.0 oz (255 g)
Water Resistant
10ft. (3 m) depth
Mount
1" Weaver or MIL-STD-1913 rail
Windage & Elevation Adjustment
0.5 MOA per click
Brightness
20 daylight settings
Power Source
1 x CR123 battery
Battery Life
1,000 continuous hours at nominal setting 12 at room temperature
Operating Temperature
-40°F to 140°F (-40°C to 60°C)
Country of Origin
Made in USA
Reticle Options
EOTECH’s unique reticle patterns are a criti- cal to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.
EOTECH One Dot Reticle
Our most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the opera- tor will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0.
Range Estimation with Unmagnified HWS
The standard ring found in most reticles equates to approximately 68" (5'8") at 100 yards.
Brightness Options
The XPS2™ HWS offers multiple brightness settings with both Standard and Night Vision modes offering quick adjustability to accommodate any shooting situation.
