THE SHORT ROUTE TO LONG-RANGE MASTERY
Technical Specifications
Overview

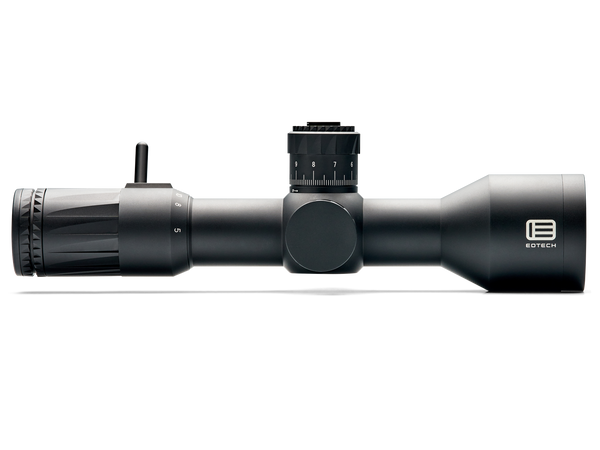

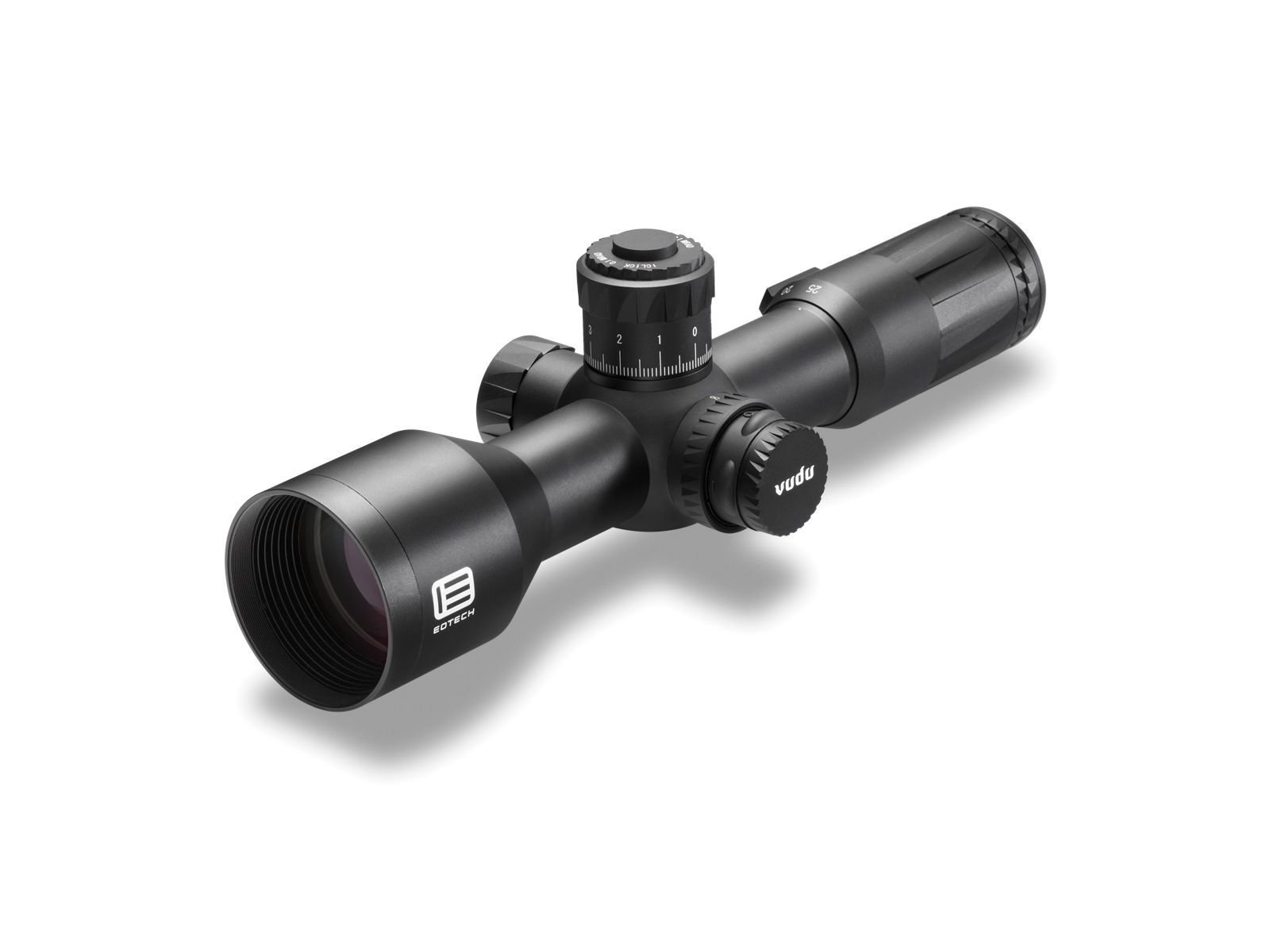

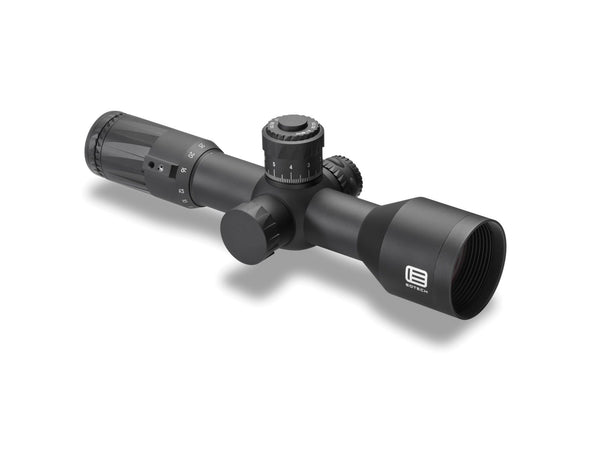

The Vudu 5-25X50 MD3-MRAD is ideal for short platform rifles. At approximately 11.2 inches in length, the 5-25X is one of the shortest first focal plane rifle scopes on the market. The elevation turret includes a push/pull locking system and EOTECH’s EZ Chek Zero Stop. One unique advantage of the short design is that it provides the ability to attach either a clip-on night vision or thermal device in front of the scope.
Included in the box:
- Vudu® 5-25X50 MD3-MRAD Rifle Scope
- Operator Manual
- Reticle Manual
- Throw Lever
- Sunshade
- Lens Cleaning Cloth
- Battery
- Zero Stop Wrench
First Focal Plane
Overall Length
11.2" (285 mm)
Weight
29.5 oz (835 g)
Magnification
5-25X
Tube Diameter
34 mm
Objective Diameter
50 mm
Power Source
CR2032
Eye Relief
5X: 2.96-3.71" (75-94 mm)
25X: 3.27-3.63" (83-92 mm)
Field-of-View @ 100 Yards
5X: 23.3 ft (7.1 m)
25X: 4.7 ft (1.43 m)
Country of Origin
Made in Japan
Â
Features
Aircraft Grade
Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability. Laser-etched adjustment indicators and push-button illumination controls for tracking east. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.
Fog Resistant
Nitrogen gas purging prevents internal fogging over the operating temperature range.
Shock Resistant
The rugged design prevents damage from heavy recoil and rough handling.
Water Resistant
The single-piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments.
Anti-Reflective Lenses
XCâ„¢ high-density, low dispersion glass with anti reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.
Â
Vudu MD3 Reticle
The MD3 is a first focal plane MRAD-based hashmark reticle that provides ranging, holdover and wind compensation in a very clean sight picture. The stadia lines are pulled back from the illuminated center aiming dot for improved long-range accuracy.
Adjustment Graduation Per Click
0.1 MRAD
Adjustment Graduation Per Rotation
10 MRAD
Total Elevation Travel
29 MRAD
Total Windage Travel
23 MRAD
