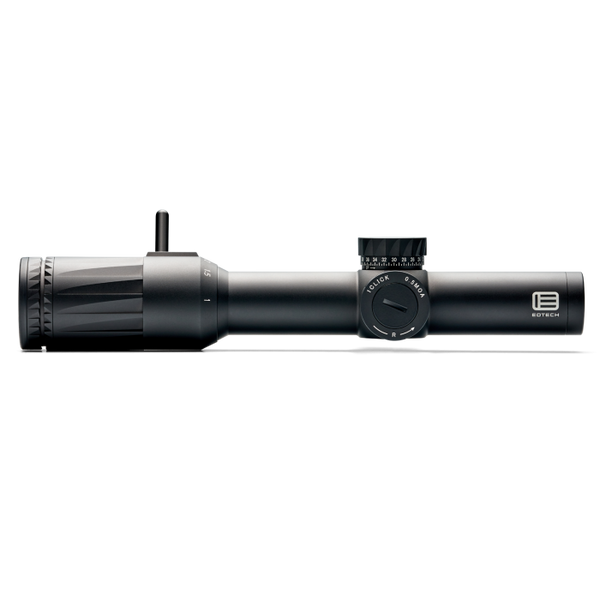

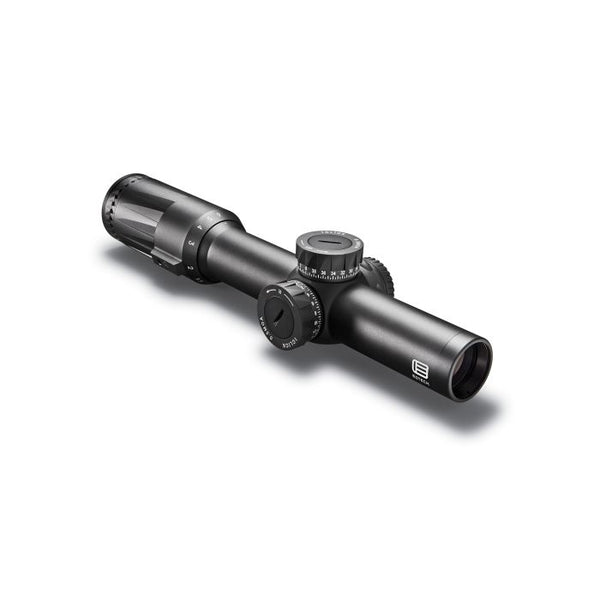

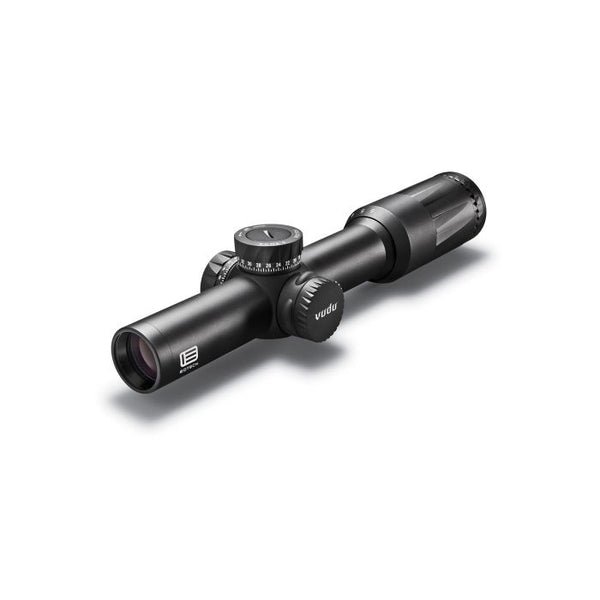

Eotech VUDU 1-6x24MM Scope

  • Sale
  • $1,329.00
  • Regular price $1,399.00
Shipping calculated at checkout.


SPEED TO TARGET AND HAIR-SPLITTING PRECISION IN PERFECT HARMONY.

Technical Specifications

Overview

This is an optic that feels at home on the AR platform or on a bolt action rifle. The EOTECH Speed Ring reticle allows for fast target engagement at low power, but at higher power provides the resolution and accuracy required to tackle longer shots. The Vudu 1-6X is the perfect solution for short- to medium-range applications.


Included in the box:

  • Vudu® 1-6X24 Rifle Scope
  • Operator Manual
  • Reticle Manual
  • Throw Lever
  • Lens Cleaning Cloth
  • Battery



First Focal Plane

Overall Length


10.63" (270 mm)

Weight


20.1 oz (570 g)

Magnification


1-6X

Tube Diameter


30 mm

Objective Diameter


24 mm

Power Source


CR2032

Eye Relief


1X: 3.27-3.94" (83-100 mm)

6X: 3.23-3.94" (82-100 mm)

Field-of-View @ 100 Yards


1X: 102.4 ft (31.2 m)

6X: 16.7 ft (5.09 m)

Country of Origin


Made in Japan



Features

Aircraft Grade

Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability. Laser-etched adjustment indicators and push-button illumination controls for tracking east. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.

Fog Resistant

Nitrogen gas purging prevents internal fogging over the operating temperature range.

Shock Resistant

The rugged design prevents damage from heavy recoil and rough handling.

Water Resistant

The single-piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments.

Anti-Reflective Lenses

XCâ„¢ high-density, low dispersion glass with anti reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.



Reticle Specifications





Vudu SR1 Reticle

The SR1 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD sub-tension lines for ranging, holdover and wind compensation. The first focal plane design allows for lightning fast target acquisition using the speed ring at the lower power settings. When the magnification setting is dialed up, the speed ring disappears from view and the inner crosshair comes in to view for more precision on longer range shots.

Adjustment Graduation Per Click


0.2 MRAD

Adjustment Graduation Per Rotation


15 MRAD

Total Elevation Travel


29 MRAD

Total Windage Travel


23 MRAD





Vudu SR2 Reticle

The SR2 incorporates the iconic EOTECH illuminated speed ring along with a BDC inner reticle calibrated for the 7.62 mm (M118LR) out to 600 yards. The first focal plane design allows for lightning fast target acquisition using the speed ring at the lower power settings. When the magnification setting is dialed up, the speed ring disappears from view and the inner BDC comes into view for more precision on longer-range shots.





Vudu SR3 Reticle

The SR3 incorporates the iconic EOTECH illuminated speed ring along with a BDC inner reticle calibrated for the 5.56 mm (75gr. BTHP) out to 600 yards. The first focal plane design allows for lightning fast target acquisition using the speed ring at the lower power settings. When the magnification setting is dialed up, the speed ring disappears from view and the inner BDC comes into view for more precision on longer-range shots.
