UNCOMPROMISING TARGETING FROM EXTREMELY CLOSE TO LONG RANGE
Technical Specifications
Overview

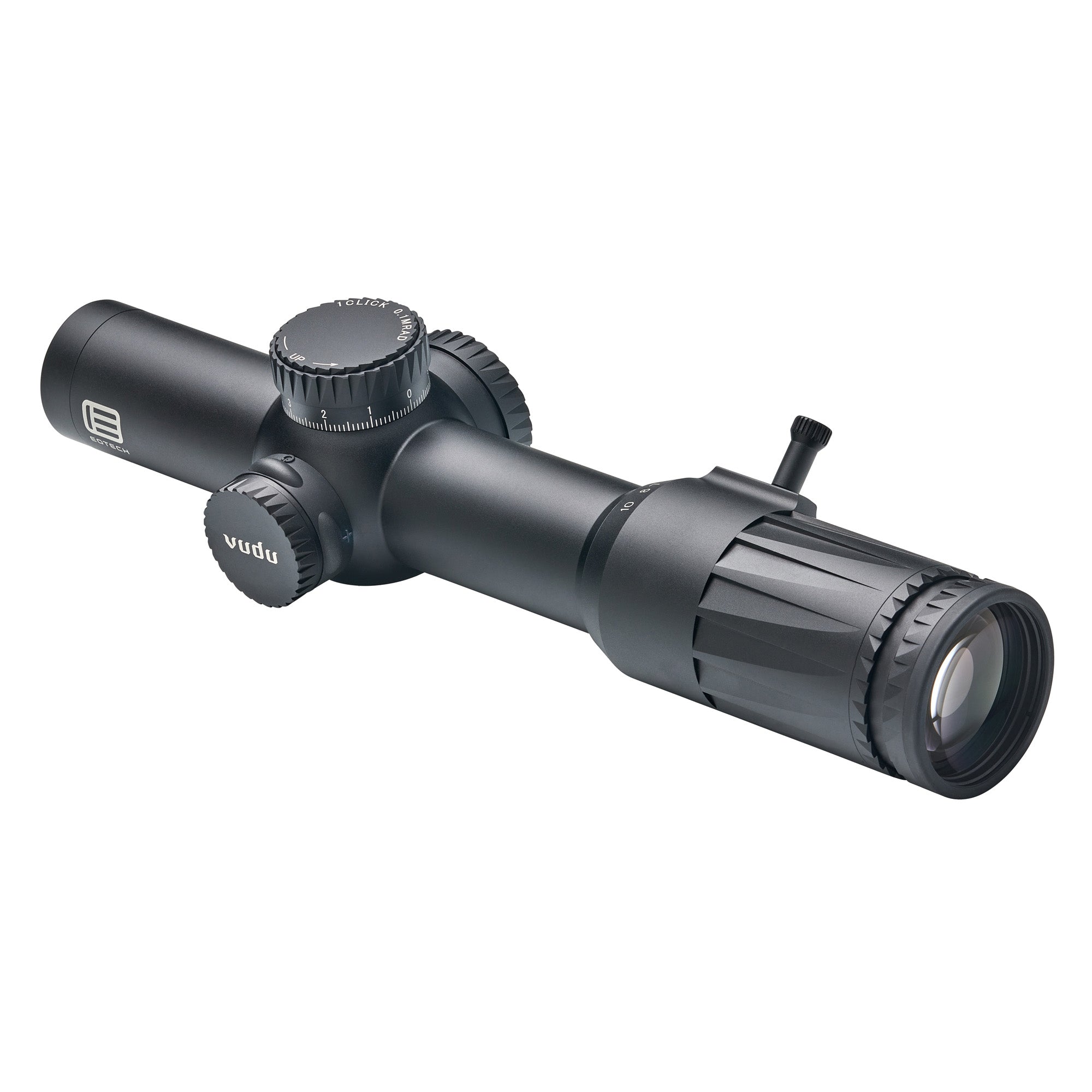

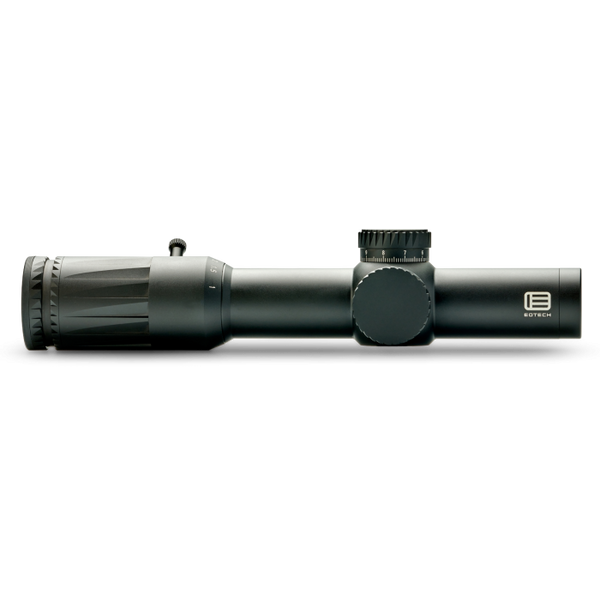

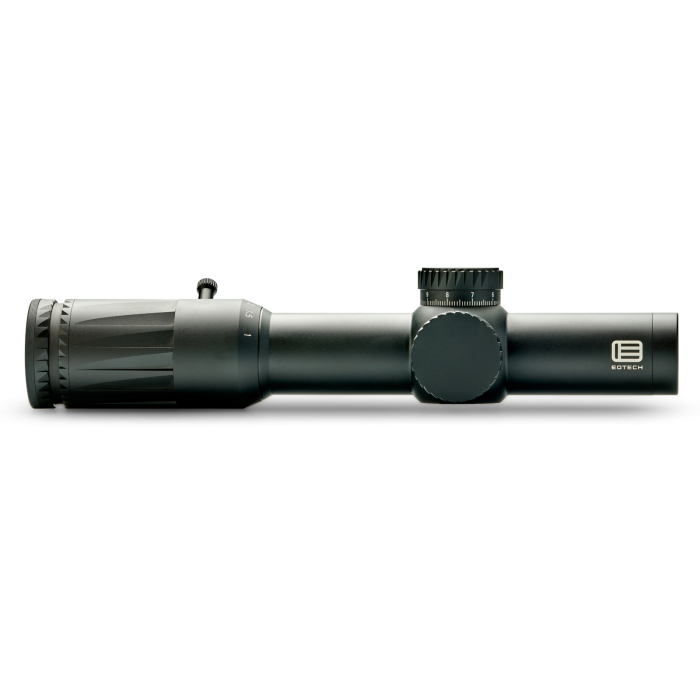

EOTECH’s Vudu 1-10x28 offers a robust 34mm, one-piece aircraft aluminum tube and single-piece eyepiece that includes a removable throw-lever for fast changes in magnification. The low profile elevation turret includes a push/pull locking system and a capped windage turret for a secure zero. The illuminated, glass-etched reticle and first focal plane design allows for distance estimation at any magnification and lighting condition.
Included in the box:
- Vudu® 1-10X28 Rifle Scope
- Operator Manual
- Reticle Manual
- Throw Lever
- Lens Cleaning Cloth
First Focal Plane
Overall Length
10.63" (270 mm)
Weight
21.3 oz (603 g)
Magnification
1-10X
Tube Diameter
34 mm
Objective Diameter
28 mm
Power Source
CR2032
Eye Relief
1X: 3.27-3.90" (83-99 mm)
10X: 3.35-3.62" (85-92 mm)
Field-of-View @ 100 Yards
1X: 116.6 ft (35.5 m)
10X: 11.7 ft (3.6 m)
Country of Origin
Made in Japan
Features:
Aircraft Grade
Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability. Laser-etched adjustment indicators and push- button illumination controls for simple manipulation.
Fog Resistant
Nitrogen gas purging prevents internal fogging over the operating temperature range.
Shock Resistant
The rugged design prevents damage from heavy recoil and rough handling.
Water Resistant
The single-piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments.
Anti-Reflective Lenses
XC™ high-density, low dispersion glass with anti-reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity..
Industrial Design
The sleek scalping design on the one-piece eye-piece allows for greater purchase and faster magnification adjustment and provides a removable throw lever for even better manipulation.

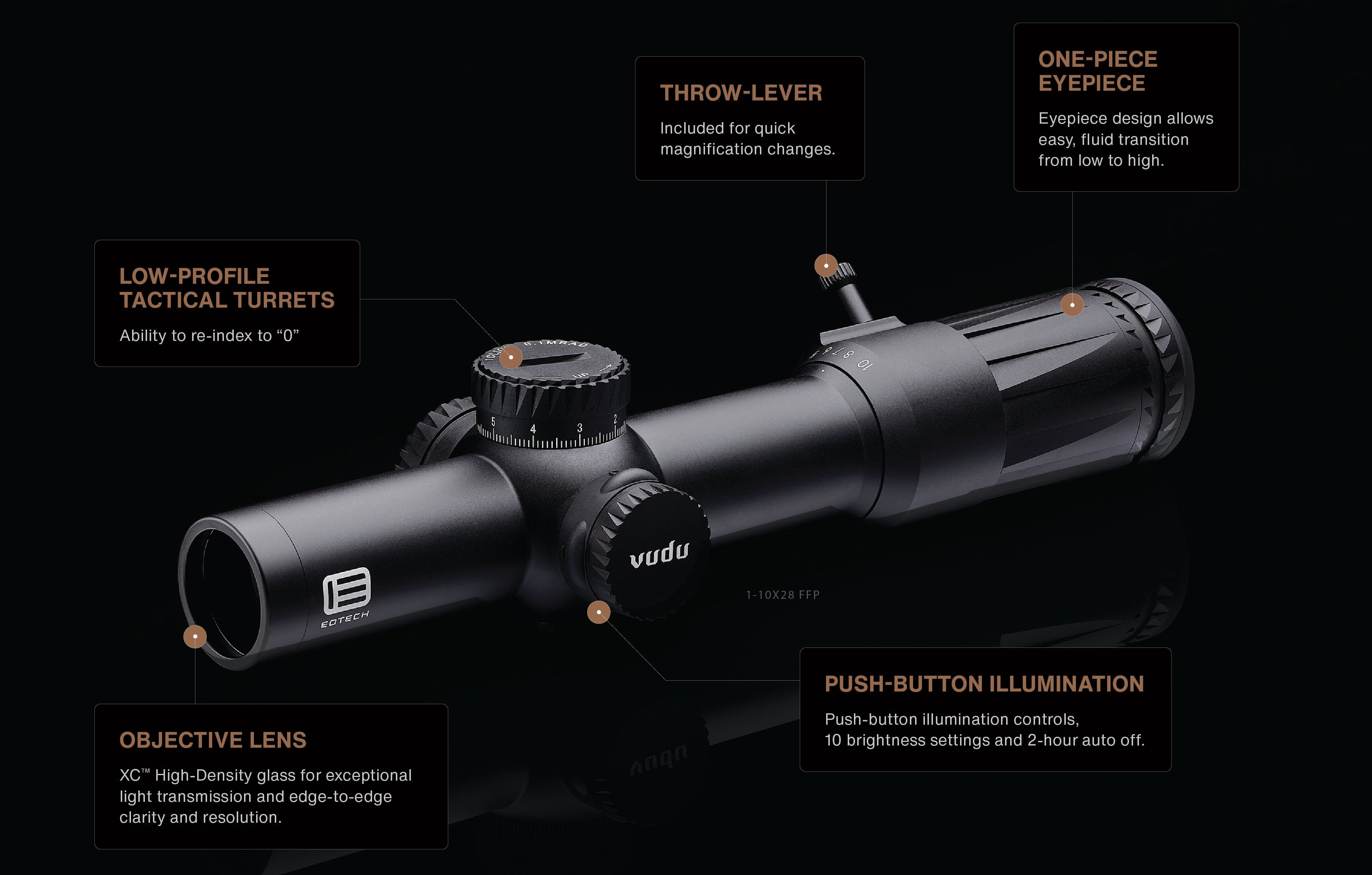

EOTECH Vudu® Characteristics
Reticle Specifications
Vudu SR-4 MOA Reticle
The SR-4 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MOA subtension lines for ranging holdover and wind compensation. With a 1MOA center aiming dot, the clean sight picture provides improved down range visibility while still allowing the full use of the horizontal and vertical stadia lines for hold-overs and wind calls.
Adjustment Graduation Per Click
0.25 MOA
Adjustment Graduation Per Rotation
40 MOA
Total Elevation Travel
100 MOA
Total Windage Travel
80 MOA
Vudu SR-5 MRAD Reticle
The SR-5 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD subtension lines for ranging holdover and wind compensation. A Christmas tree style reticle offers a precision 0.25 MRAD center aiming dot and the secondary windage and elevation features allow for precise holds on those longer range shots.
Adjustment Graduation Per Click
0.1 MRAD
Adjustment Graduation Per Rotation
15 MRAD
Total Elevation Travel
29 MRAD
Total Windage Travel
23 MRAD
Vudu LE-5 MRAD Reticle
The LE-5 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD subtension lines for ranging holdover and wind compensation. A Christmas tree style reticle offers a precision cross-hair and the secondary windage and elevation features allow for precise holds on those longer range shots.
Adjustment Graduation Per Click
0.1 MRAD
Adjustment Graduation Per Rotation
15 MRAD
Total Elevation Travel
29 MRAD
Total Windage Travel
23 MRAD
