Technical Specifications
Overview

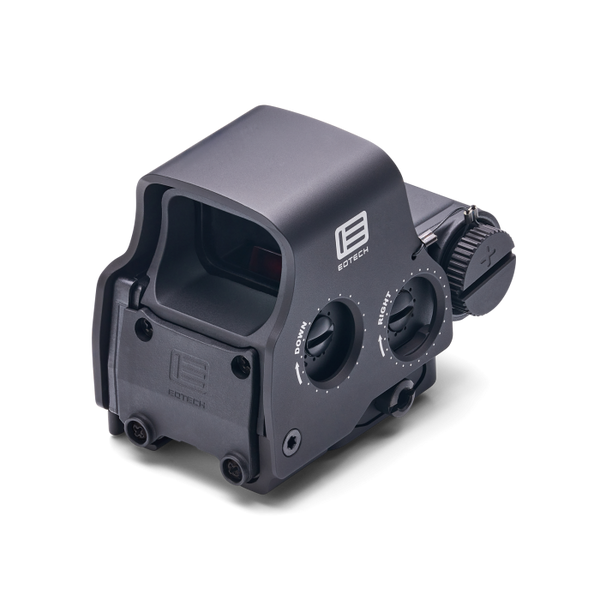

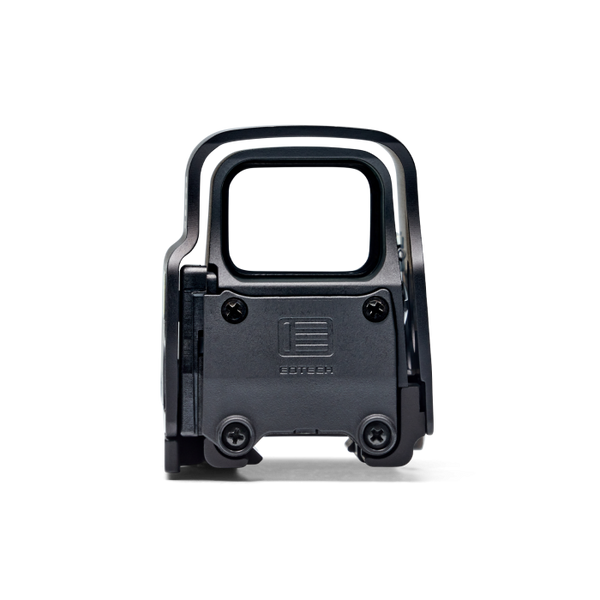

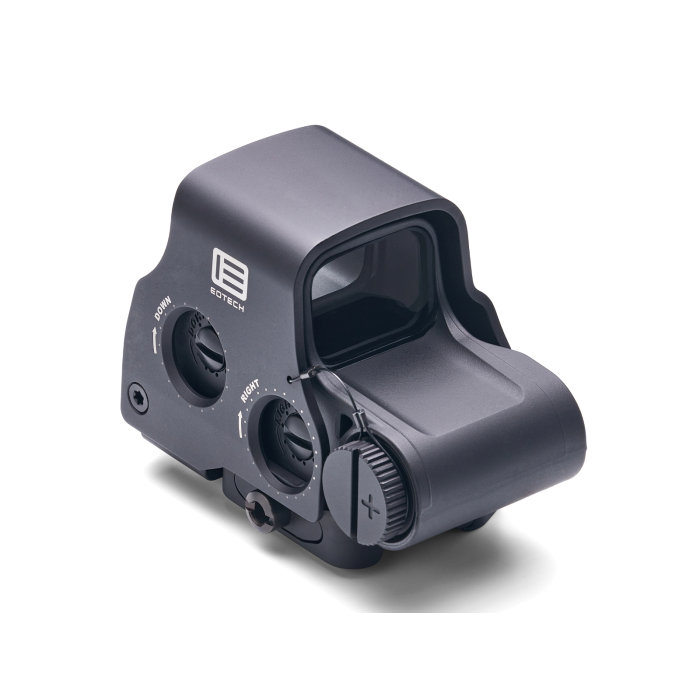

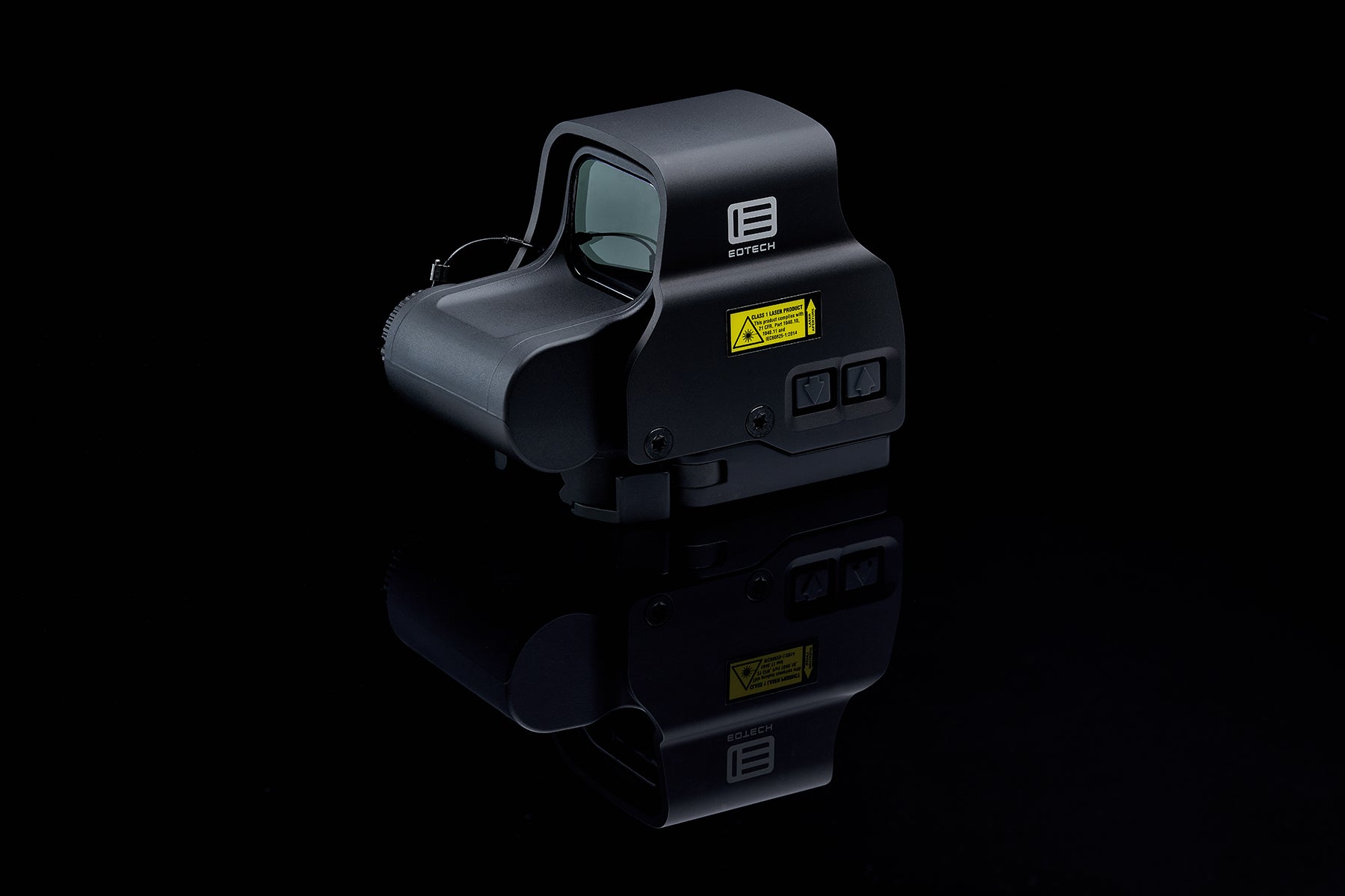

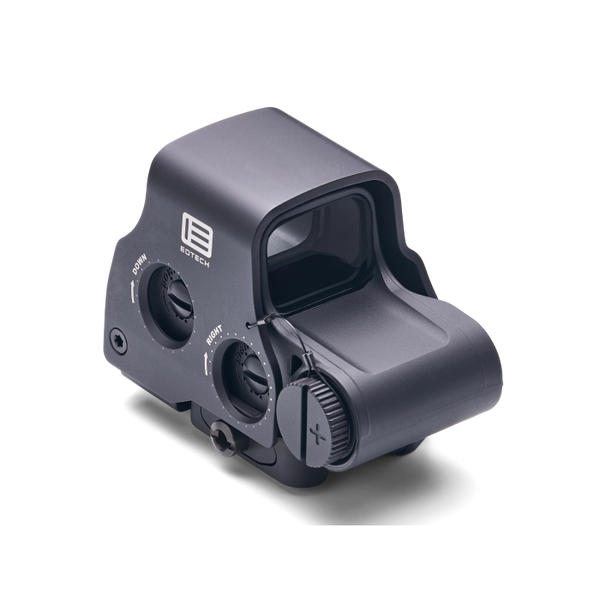

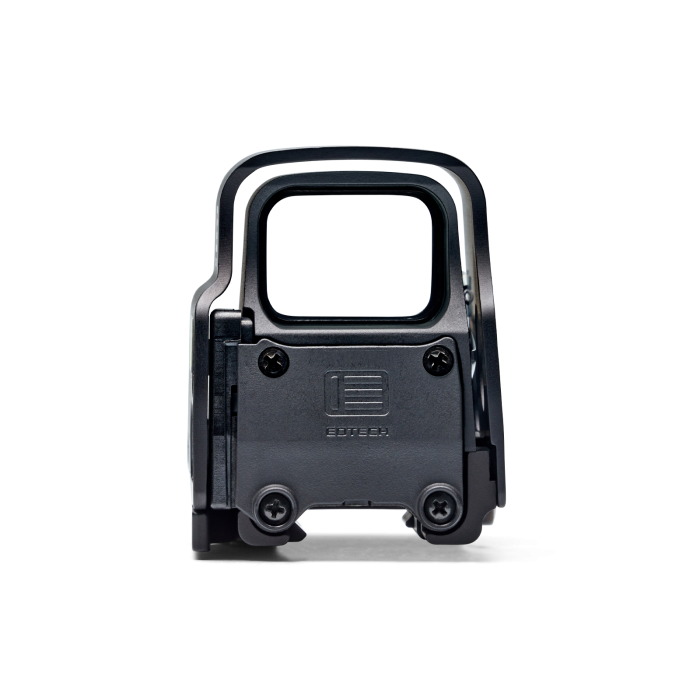

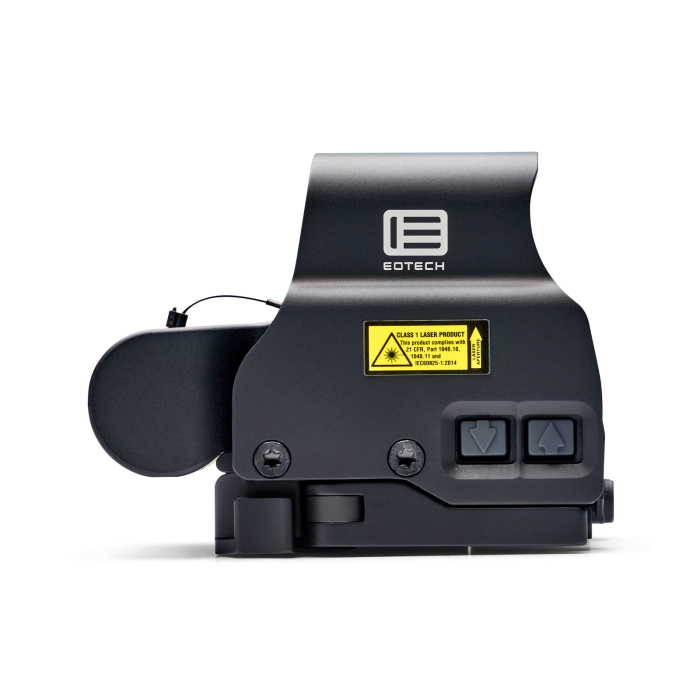

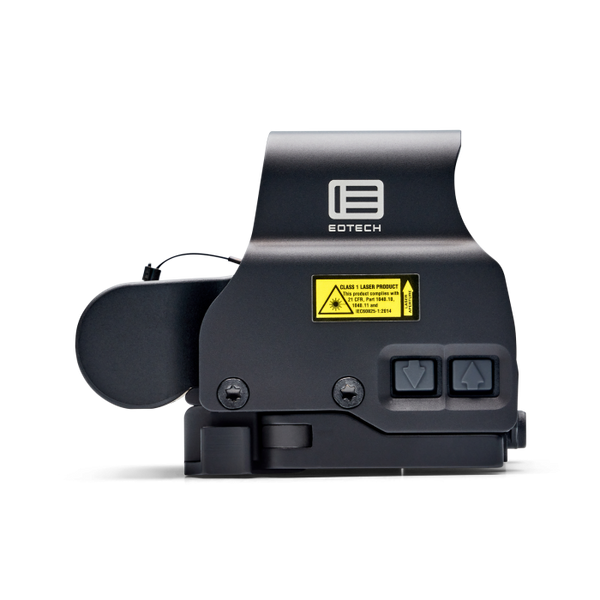

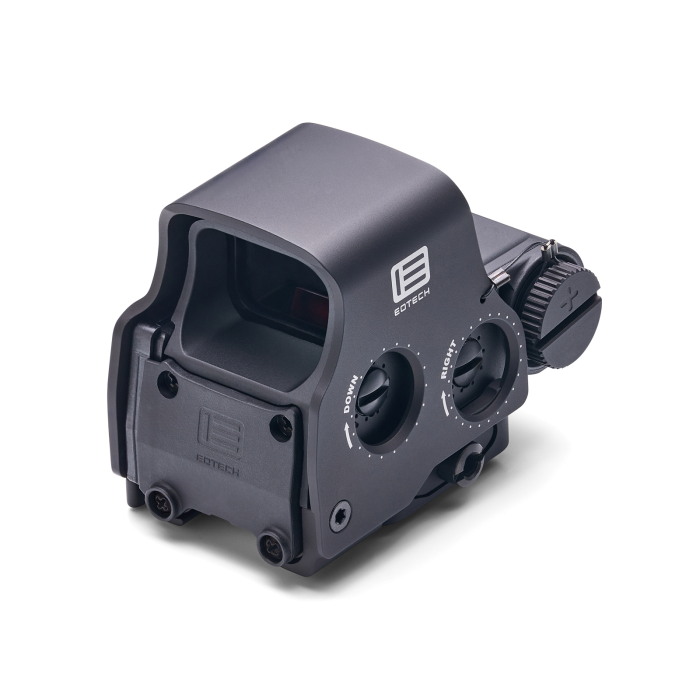

The HWS EXPS2™ maximizes rail space with its compact size and allows for co-witnessing of iron sights. It has convenient side buttons to add a magnifier and features an adjustable, locking, quick-detach lever for easy attachment and removal.
Included in the box:
- HWS EXPS2™
- Quick-Start Guide
- Warranty Card
- CR123 Battery
- Protective Case
- QD Lever
Non-Night Vision Compatible
L X W X H
3.8" x 2.3" x 2.9" (96.5 x 58.4 x 73.7 mm)
Weight
11.2oz (317.5g)
Water Resistant
10ft. (3 m) depth
Mount
1" Weaver or MIL-STD-1913 rail

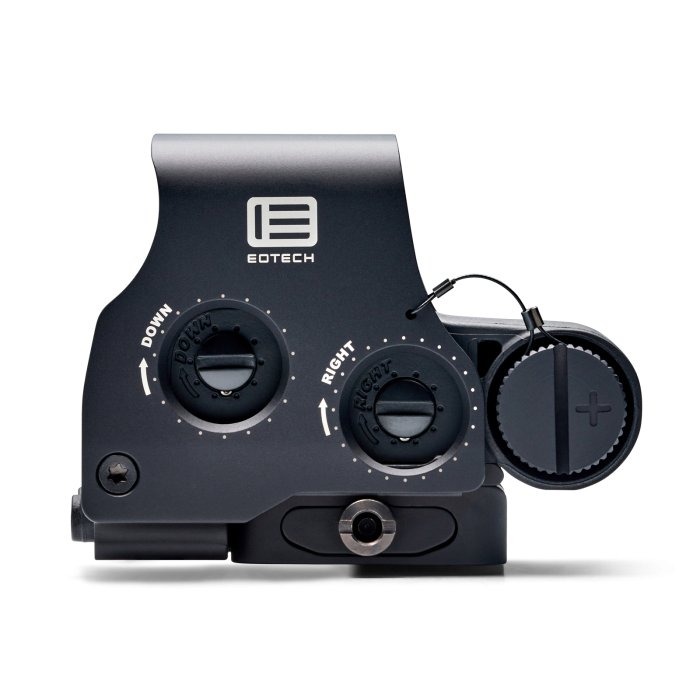

Windage & Elevation Adjustment
0.5 MOA per click
Brightness
20 daylight settings
Power Source
1 x CR123 battery
Battery Life
1,000 continuous hours at nominal setting 12 at room temperature
Operating Temperature
-40°F to 140°F (-40°C to 60°C)
Country of Origin
Made in USA
Operator Grade Holographic Weapon Sight
An operator-grade Holographic Weapon Sight built for close-quarter engagements with fast-moving targets.
Reticle Options
EOTECH’s unique reticle patterns are a critical to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.
Range Estimation with Unmagnified HWS
The standard ring found in most reticles equates to approximately 68" (5'8") at 100 yards.
Brightness Options
The EXPS™ HWS offers multiple brightness settings offering quick adjustability to accommodate any shooting situation.
